Lintra LMT

  • Lighting technology LED
  • Linear module for three-circuit track
  • Tool-less mounting with track adapter for three-
    circuit track (Global or Stucchi)
  • Rotatable (90°)
  • Lineare optics with beam characteristic DNB, DMB, DWB or WB
  • Supply unit included
  • Version with DALI on request
    Colours : white, anthracite

Product details

Power level [W]

Power level [W]

Light colourLight colour Luminous flux [lm] P System *[W] System efficiency [lm/w]
8309758lm57,5W171
8309557lm57,5W168
84010286lm57,5W180
84010074lm57,5W177
83510022lm57,5W176
8359815lm57,5W172
P System : The value can be up to 10% higher.

More information

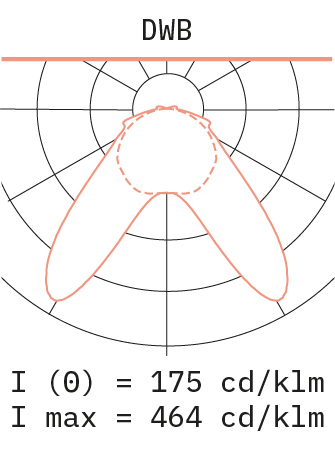

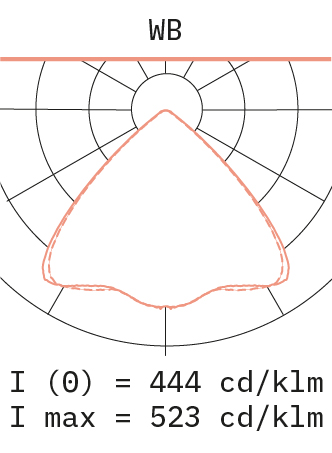

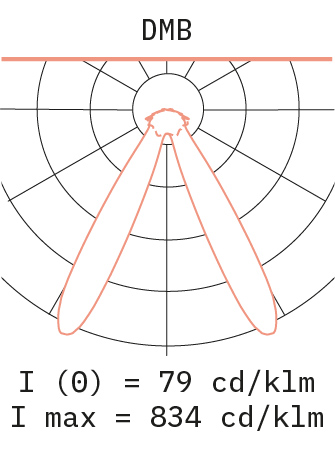

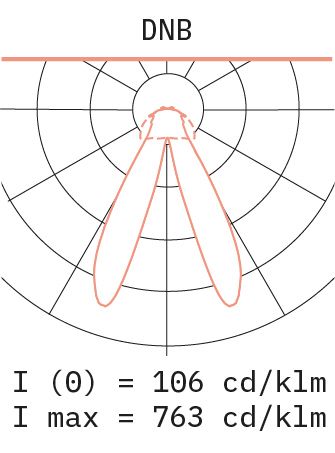

Light distribution

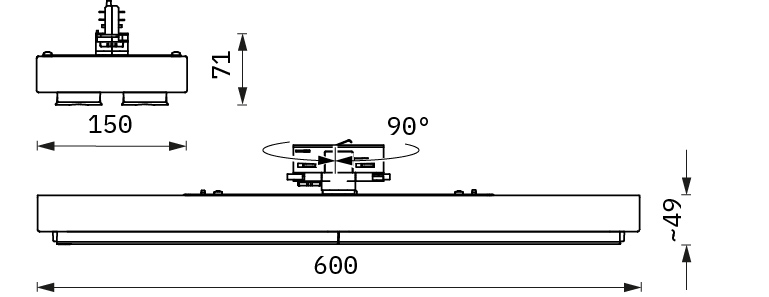

Technical drawing

Planning information

Technical data

InformationValues
Connection data220-240 V, 50/60 Hz (110-277 V on request)
Weightapprox. 2,1 kg
Colour tolerance3SDCM (MacAdam)
Maintenance of luminous fluxL80/B10 ≥ 50.000h, Ta 25 °C
L90/B50 ≥ 50.000h, Ta 25 °C
Failure rateC0/B10 ≥ 50.000h, Ta 25 °C
Photobiological safetyRG1
Number per circuit breaker B 16A30
Protection class1
Type of protectionIP20
Certification markENEC / CB in preparation



Documents and downloads


Here you find all downloads for our luminaire Lintra LMT.





Title File Type| Size
General mounting information 62BD0012-G_Montagehinweise.pdf PDF | 919.3 KB
Mounting_Instructions_Lintra_LMT.pdf Mounting_Instructions_Lintra_LMT.pdf PDF | 755.0 KB
DATA_Lintra_LMT_EN.pdf DATA_Lintra_LMT_EN.pdf PDF | 321.3 KB
